Video

Resolution

input

1920×1080_60P, 1920×1080_60i,

1920×1080_50P, 1920×1080_50i,

1280×720_60P, 1280×720_50P,

720 x 576_50i,720 x 480_60i

Output

1920×1080_30P, 1920×1080_25P,

1280×720_30P, 1280×720_25P,

720 x 576_25P, 720 x 480_30P

Encoding

MPEG-4 AVC/H.264

Bit-rate

1~ 13Mbps each channel

Rate Control

CBR/VBR

GOP Structure

IP …P (P Frame adjustment, without B Frame )

Audio

Encoding

MPEG- 1 Layer 2, LC-AAC, HE-AAC and AC3 Pass through

Sampling rate

48KHz

Resolution

24-bit

Audio Gain

0-255 Adjustable

MPEG- 1 Layer 2 Bit-rate

48/56/64/80/96/112/128/160/192/224/256/320/384 kbps

LC-AAC Bit-rate

48/56/64/80/96/112/128/160/192/224/256/320/384 kbps

HE-AAC Bit-rate

48/56/64/80/96/112/128 kbps

Stream

output

IP output through DATA (GE) over UDP and RTP/RTSP protocol

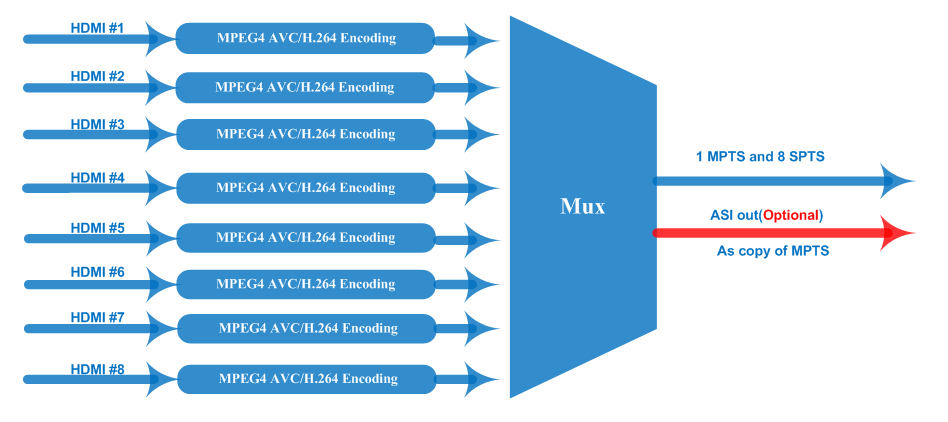

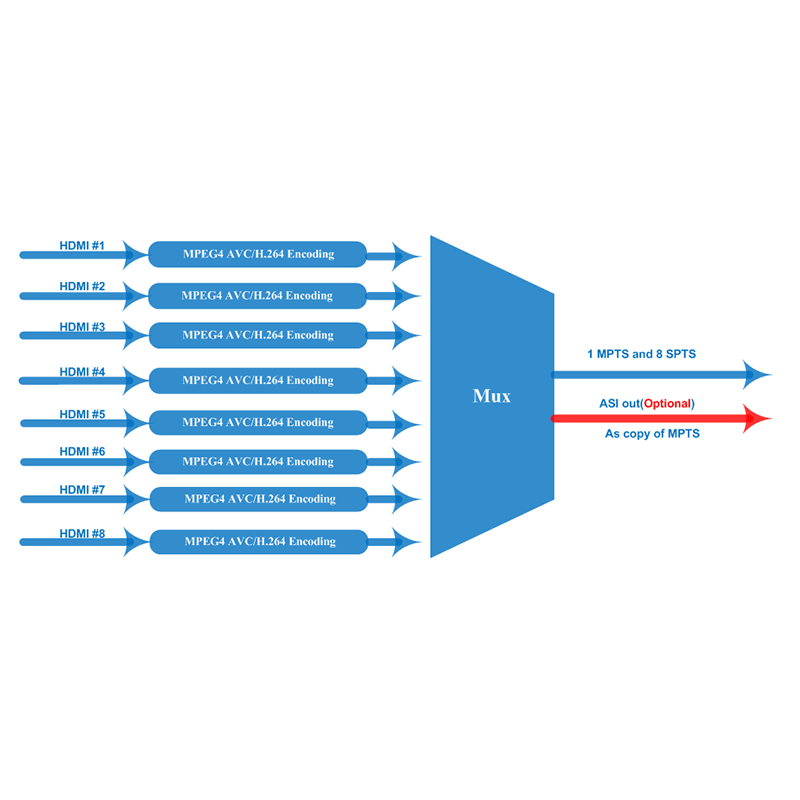

(8 HDMI inputs with 8 SPTS and 1MPTS output for each encoder board)

1 ASI out as mirror of MPTS (Optional as order)

System

function

Network management(WEB)

Chinese and English language

Ethernet software upgrade

Miscellaneous

Dimension (W×L×H)

482mm×328mm×44mm

Environment

0~45℃(work)；-20~80℃（Storage）

Power requirements

AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz
