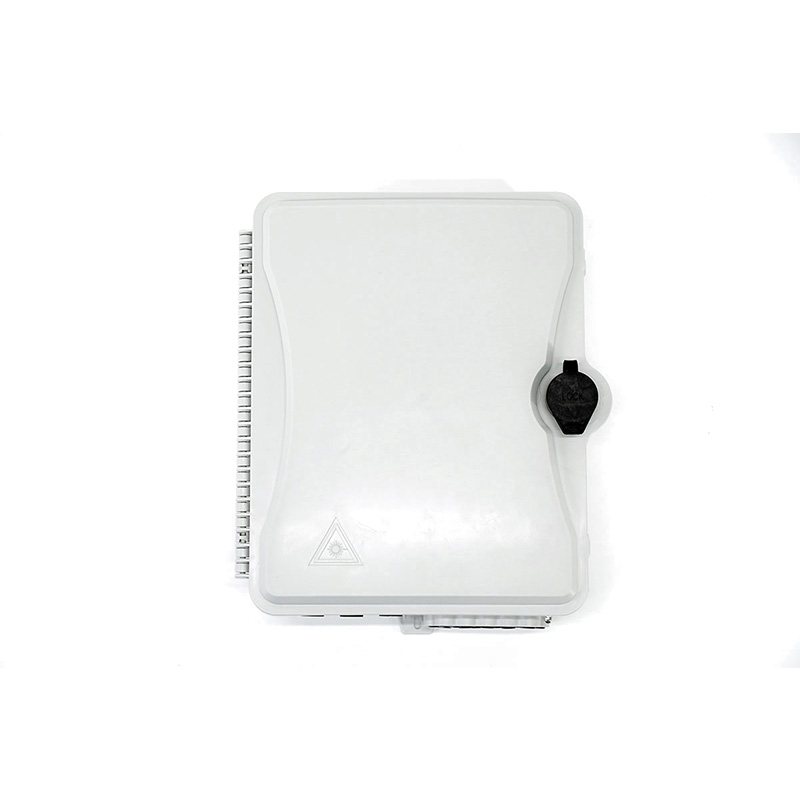

16 Core Fiber Distribution Box

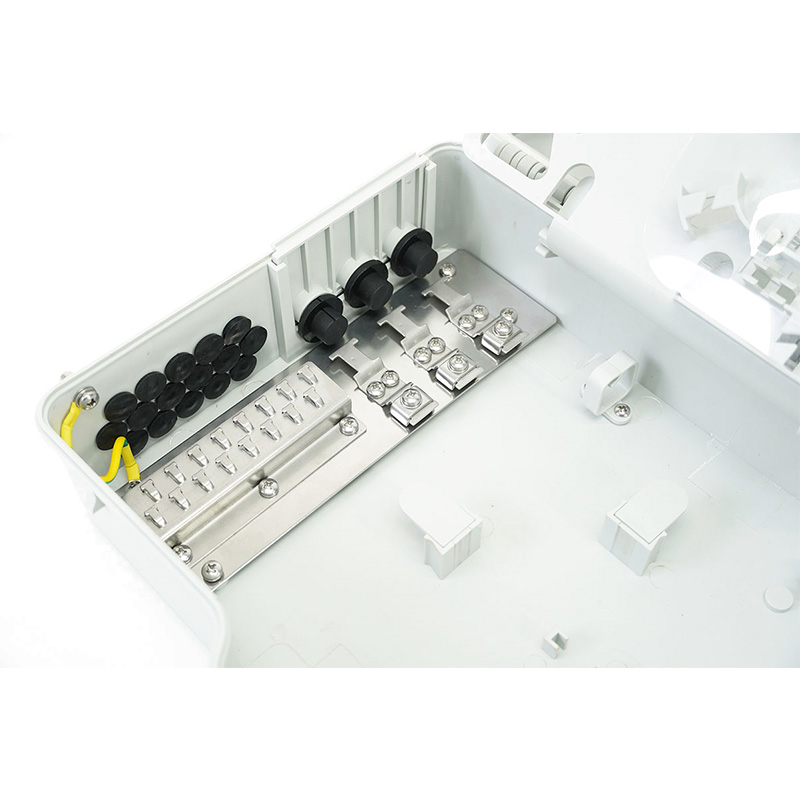

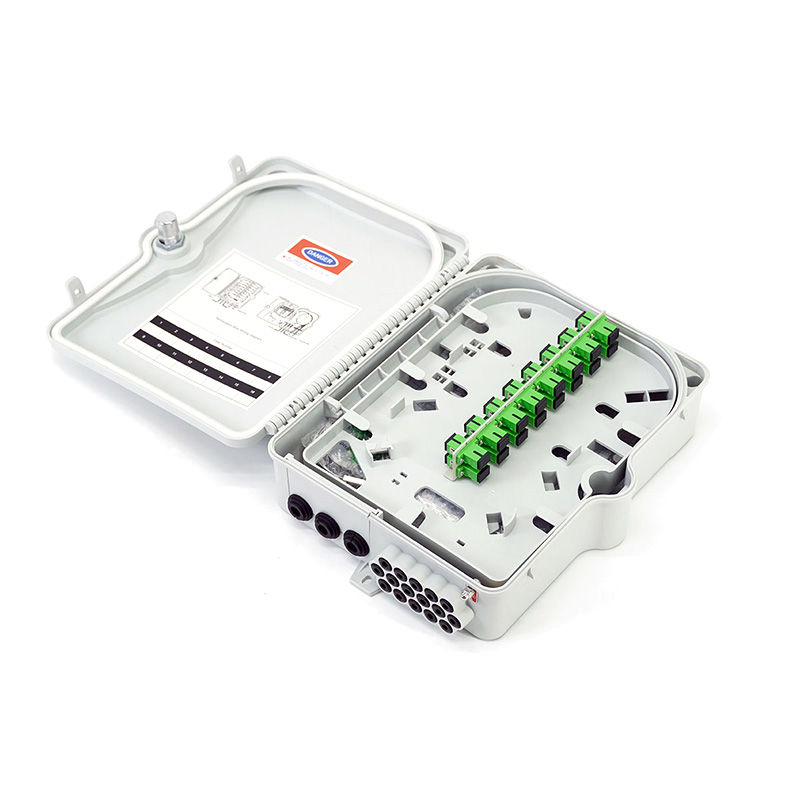

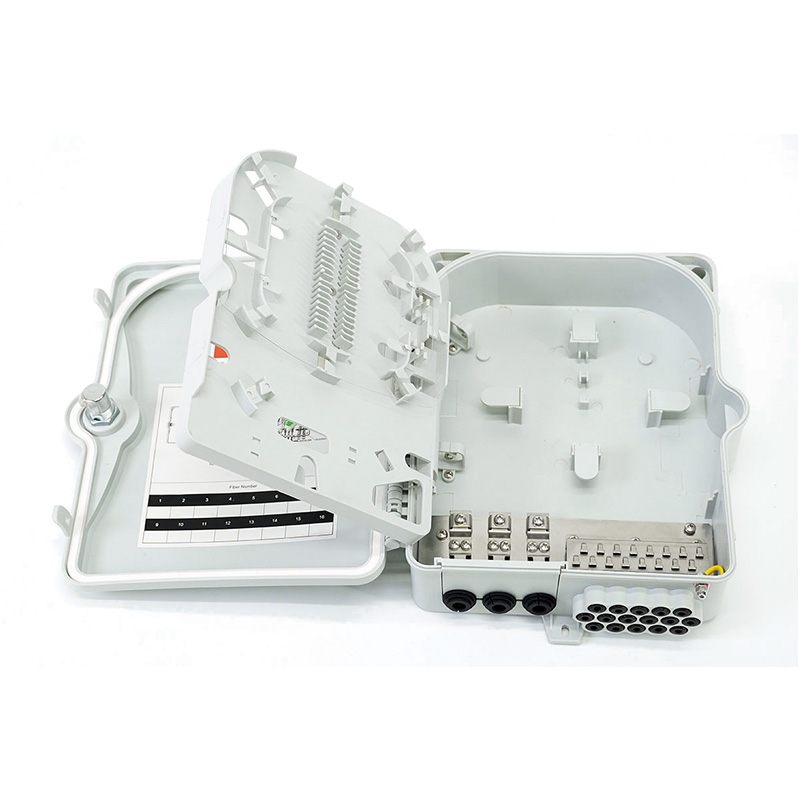

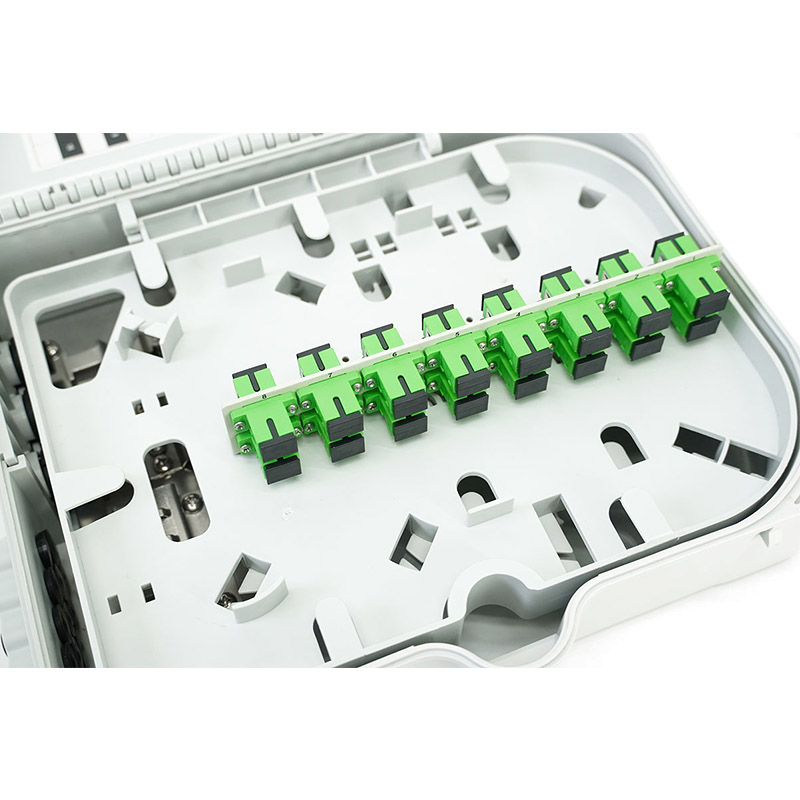

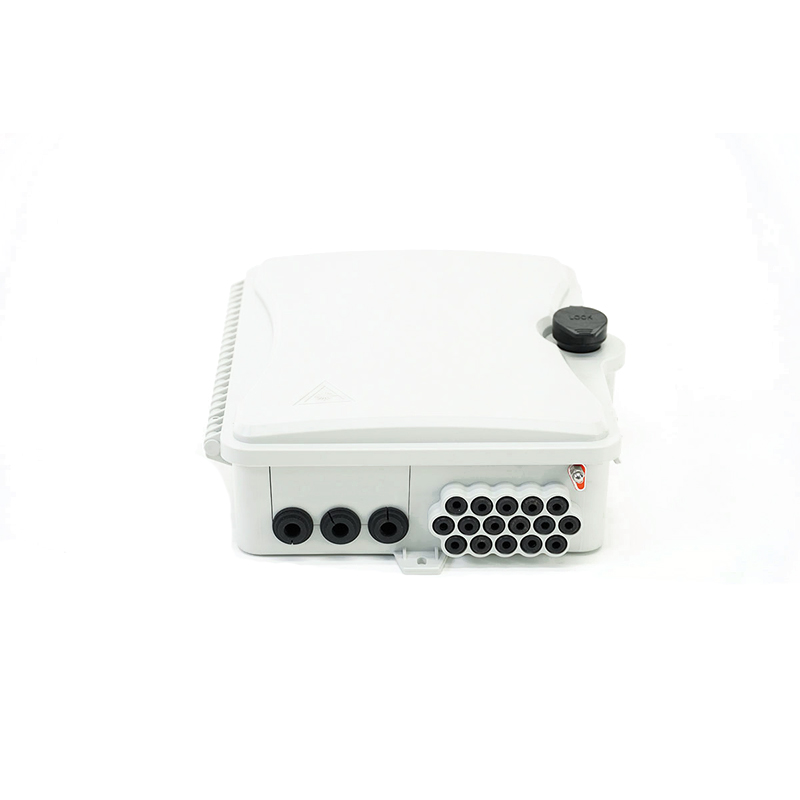

GWDB-16-01 fiber optical distribution box is adopted by module type splitter structure, and its main function is for splicing, distribution and protection of the fiber optical. It has 3pcs of optical cable inlet ports and 18pcs of 8 figure soft cable outlet ports. The main part is made from polymer plastic material, ‘slider’ structure for box sealing, with fixing screw (for option). easy to open and close. The installation method of the box is pole-mounting or wall-mounting.
Model No | GWDB-16-01 |
Dimensions | 326(L)×277.5(W)×124(H) mm |
Weight (kg) | 3.0-3.5kg |
Cable entrance ports | 3pcs of Φ10-15 optical cable ports, 18pcs of 8 figure soft cable ports |
Splice tray capacity | 24F |
Max splice capacity | 24F |
Splitter | 2*1:4 or 2*1:8 or 1*1:16 cassette PLC |
IP level | IP55 |
Operation temperature | -40~+60℃ |
