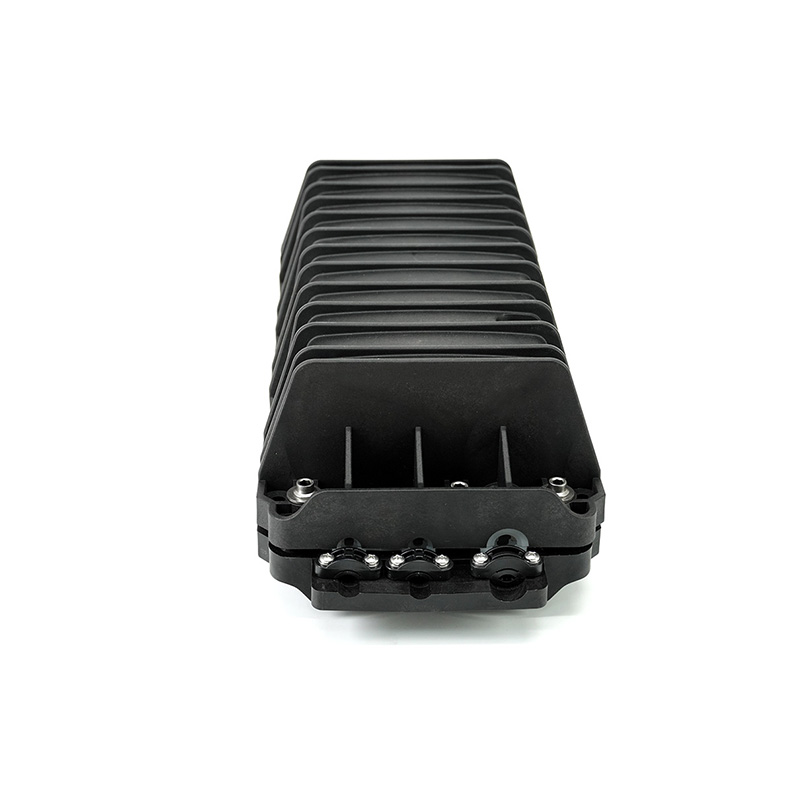

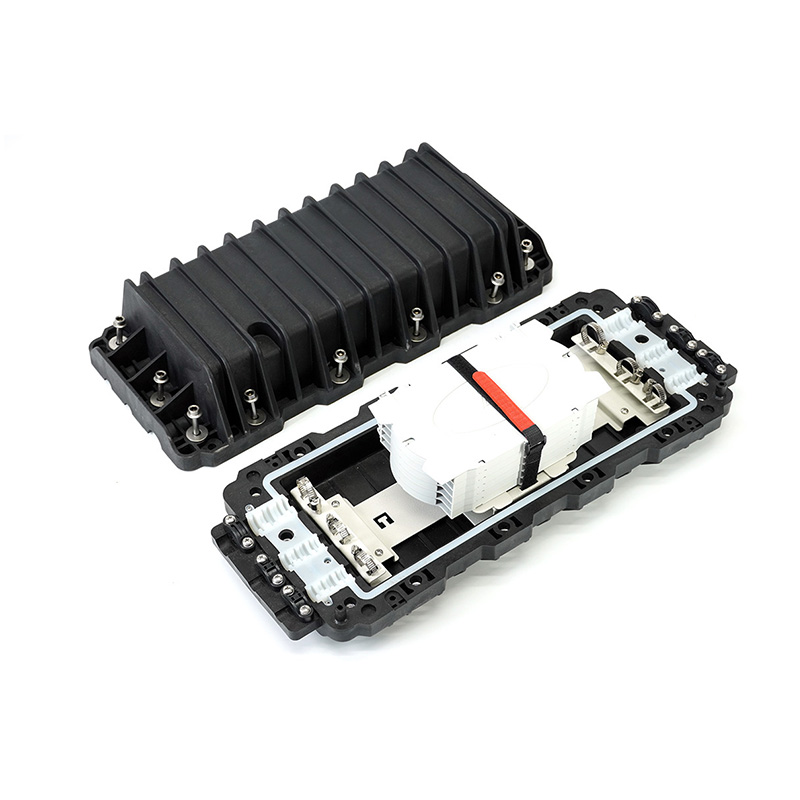

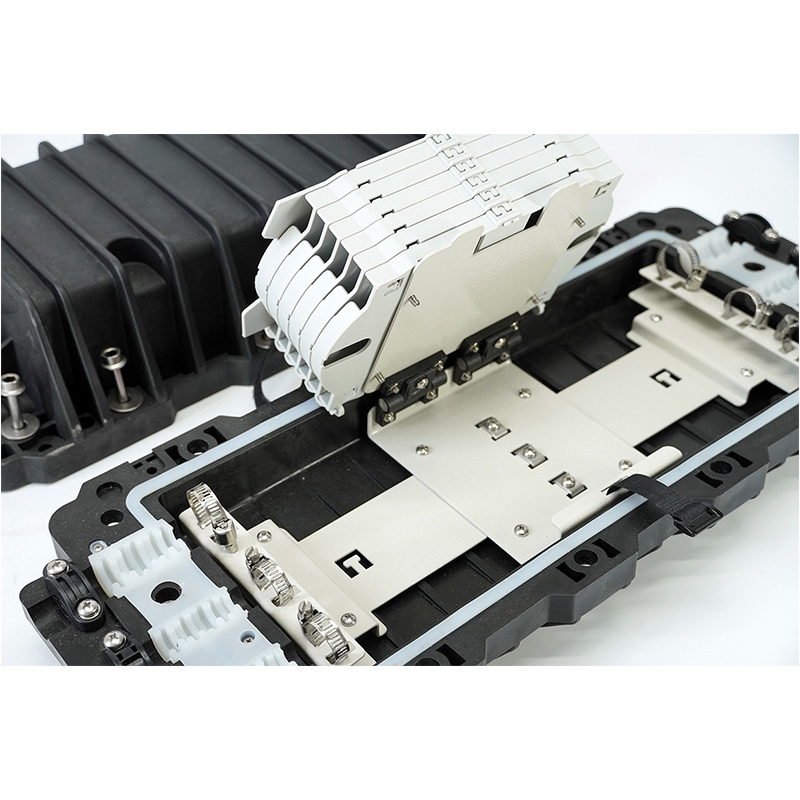

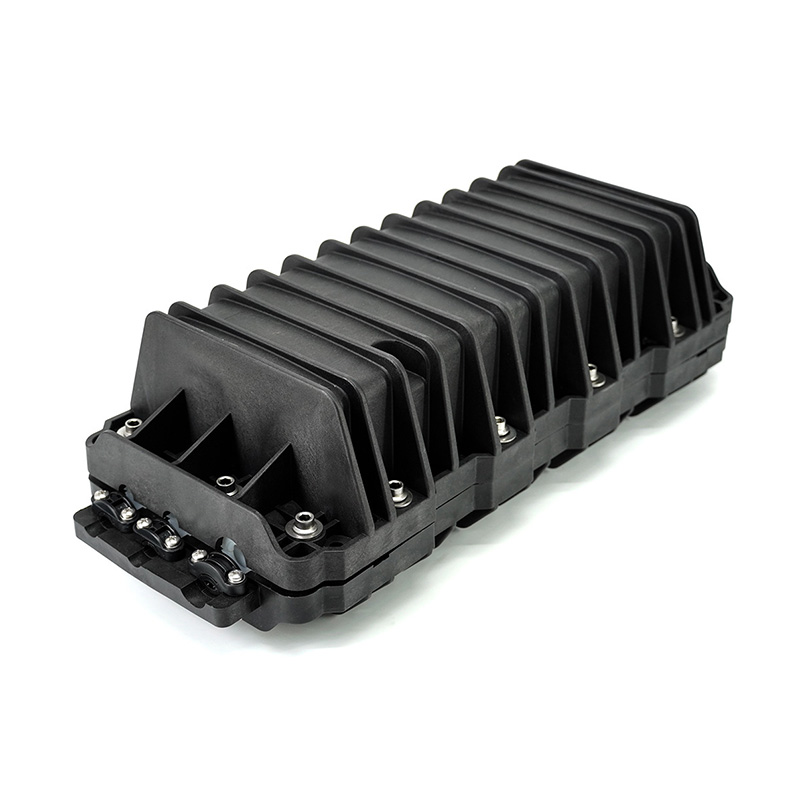

In-line Type Splice Closure
GPJ-6814-C type of fiber optic splice closure is a kind of multi-purpose optical cable connection product, which can connect and divide optical fiber. The box can be applied to a variety of optical cable (loose sleeve, skeleton, ribbon, etc.) and can be installed in a variety of environments (overhead, wall, pipe-line, manhole, underground), and for a variety of connecting methods (distribution, bridge, branch, etc.).
Features:
* Cable ports: 6 cable ports in total. Four ports meet cable diameter Ф10～18mm
* Seal performance: Mechanical sealing mode, protection grade is up to IP 68.
* GPJ09-6814-C meet max capacity 288f.
* Strong weather resistance, can effectively resist high and low temperature and chemical corrosion tests
* Tighten screws and gasket are all made of 304 stainless steel to improve the corrosion resistance
* Installation mode: Suitable for Aerial, Pipe line, Manhole, Underground mounting.
Specifications:
Model No. | GPJ09-6814-C |
Style | In-line/ Horizontal |
Dimensions | 537(L)×215(W)×151(H) mm |
Weight (kg) | 5 - 5.5 |
Material | PP+GF |
Sealing Type | Mechanical Seal |
Protection Grade | IP68 |
Cable ports | 6 |
Cable diameter | Φ 10-18 mm |
Fiber Splice Capacity | 144/288 |
Tray Capacity | 24/48 |
Tray Count | 6 |
Application | Aerial/ Duct Mounting |
