Hinged Type Splice Closure

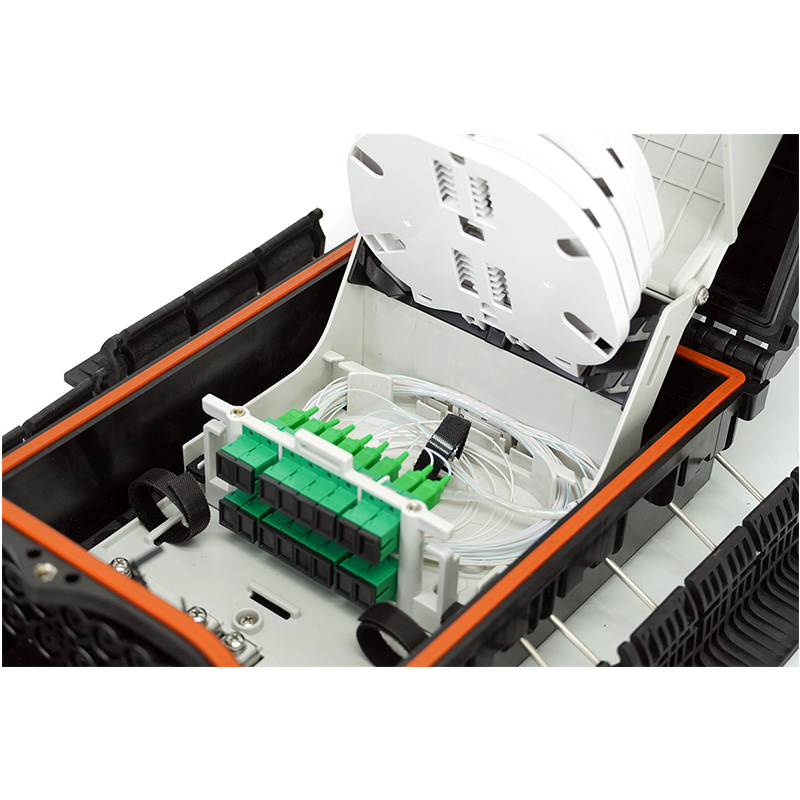

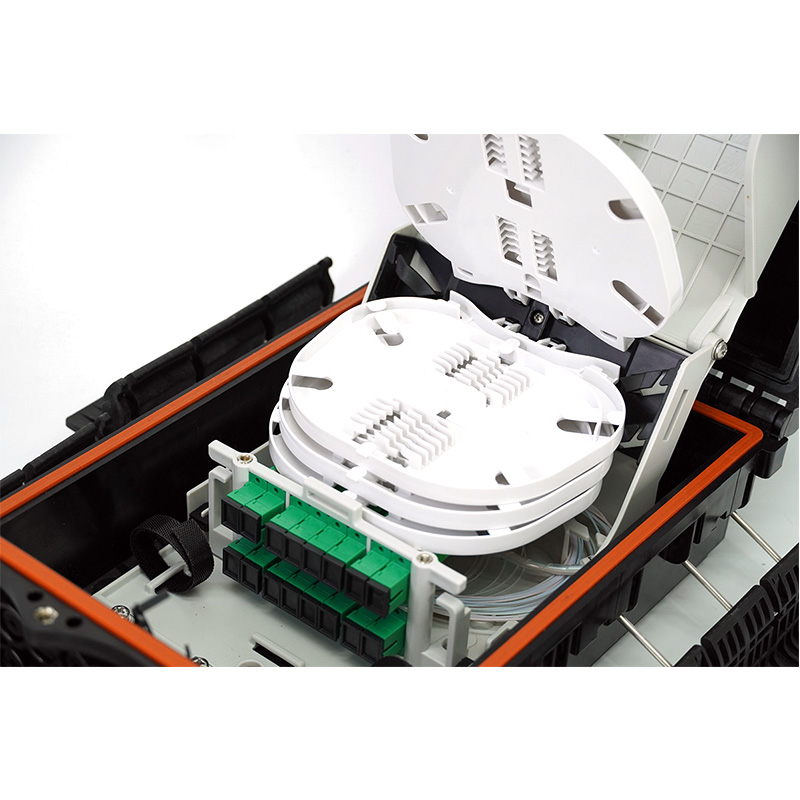

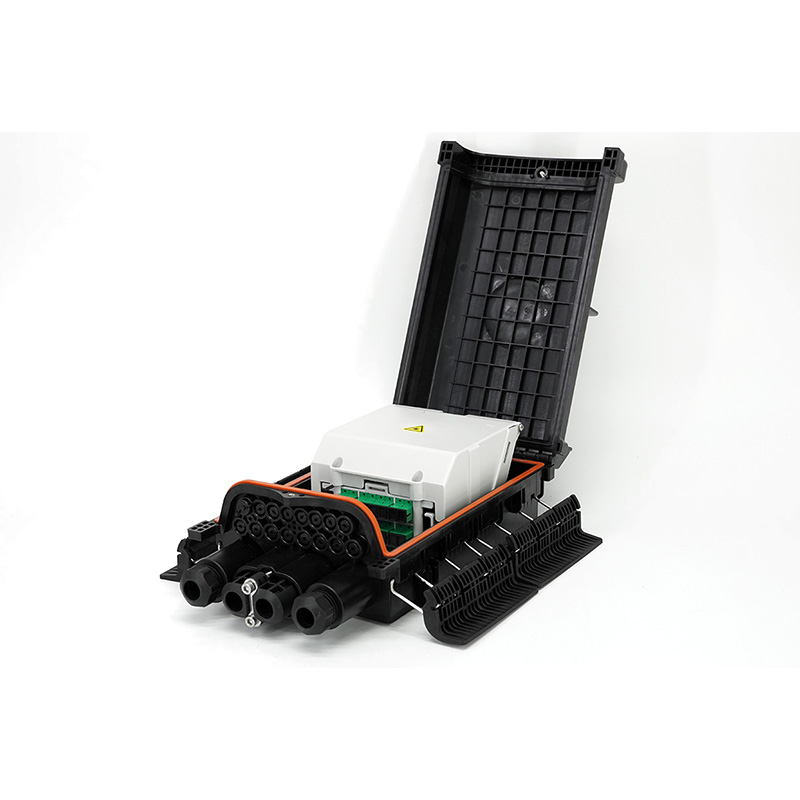

GWH-16D-01 hinged closure with SC adapters features the hinged structure and a tray protector for independent fiber fusion splice and distribution. It is designed for Plug and Play fiber management solutions. The entrance and exit ports include 1 uncut, 2 branch, and 16 drop cable ports. The waterproof rating of this NAP box is IP55.

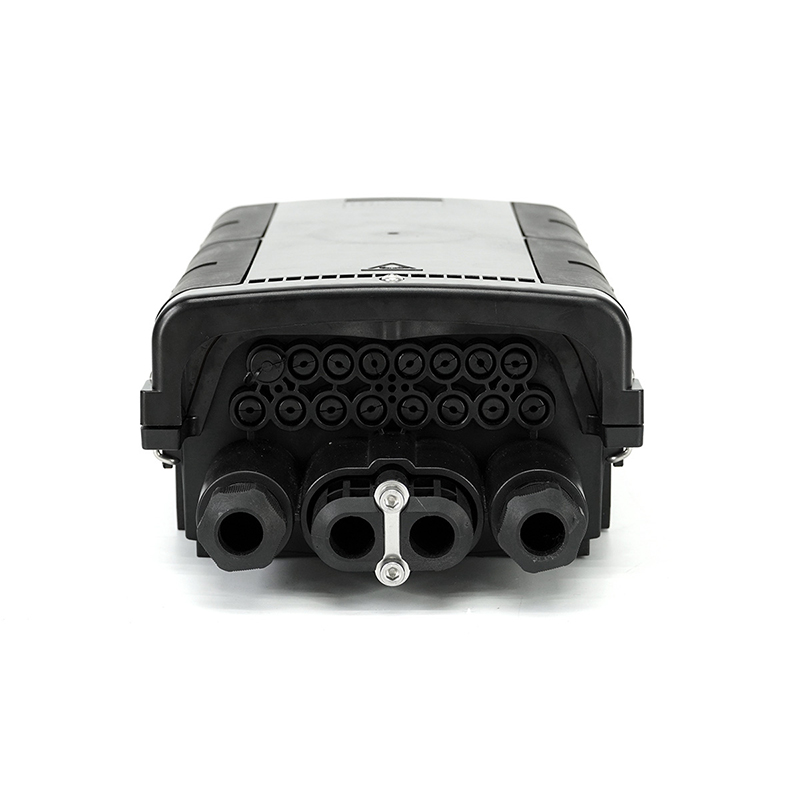

· Ports: 1 uncut, 2 branch, φ10-17.5 mm, 16 drop, sealing plug design, φ2*3 mm
· Capacity: 24F tray capacity, max 4 splice trays
· Fusion Splice Capacity: maximum 96F
· Adaptor/Splitter: 2 pcs 1:8 mini splitter, 16 pcs adapters

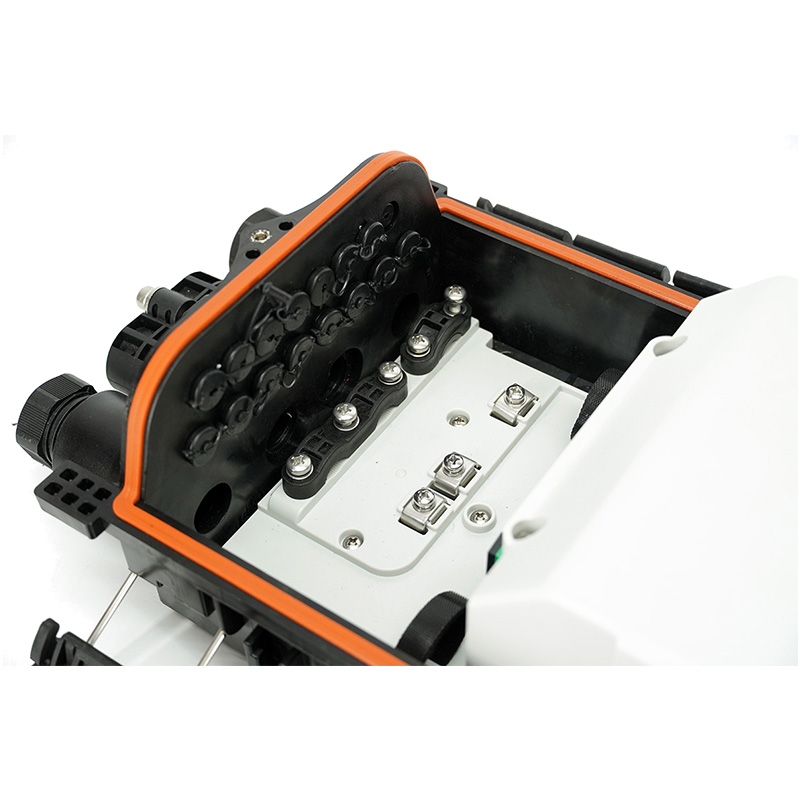

· Sealing: hinged structure, buckles and silicone rubber for seal, IP55
· Installation: wall mounting, pole mounting
· Performance: all types meet the IEC standards
· Plug and play
